0860
Fully Adhesive Backed EPDM Membrane

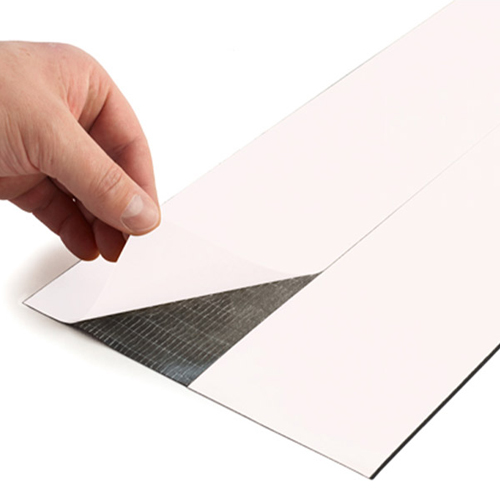

OBEX CORTEX 0860 Fully Adhesive Backed EPDM Membrane is a self-adhesive backed, flexible membrane which is used to create weather and airtight seals around openings such as windows, doors and SFS sections on construction projects. It has excellent water resistance properties and is third-party approved for façade applications.
OBEX CORTEX 0860 EPDM can be supplied with a split in the release liner to ease installation. We offer many different permutations such as opposite sides, a single adhesive strip, fully adhesive backed, etc.
Typical uses
- Weather & airtight seals around windows, doors and curtain walling systems
- Weather & airtight seals from SFS unit sections to the concrete frame
- Top of parapet walls
- Balcony waterproofing
Product Specs
Widths
50mm - 500mm
Length
20m per roll
Thickness
0.75mm
Product Order Codes
| Product Codes | Product Description | Width | 0860 Adhesive Width | Thickness | Length | Box Quantity |
|---|---|---|---|---|---|---|
| 0.5mm EPDM | ||||||
| 10.0860.001 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 | 50mm | Full-Width | 0.5mm | 20m | 1 |
| 10.0860.002 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 | 100mm | Full-Width | 0.5mm | 20m | 1 |
| 10.0860.003 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 | 125mm | Full-Width | 0.5mm | 20m | 1 |
| 10.0860.004 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 | 150mm | Full-Width | 0.5mm | 20m | 1 |
| 10.0860.005 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 | 200mm | Full-Width | 0.5mm | 20m | 1 |
| 10.0860.006 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 | 225mm | Full-Width | 0.5mm | 20m | 1 |
| 10.0860.007 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 | 250mm | Full-Width | 0.5mm | 20m | 1 |
| 10.0860.008 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 | 300mm | Full-Width | 0.5mm | 20m | 1 |
| 10.0860.009 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 | 350mm | Full-Width | 0.5mm | 20m | 1 |
| 10.0860.010 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 | 400mm | Full-Width | 0.5mm | 20m | 1 |
| 10.0860.012 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 | 500mm | Full-Width | 0.5mm | 20m | 1 |
| 10.0860.017 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 - 50mm | 100mm | 50mm | 0.5mm | 20m | 1 |
| 10.0860.018 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 - 20mm | 150mm | 20mm | 0.5mm | 20m | 1 |
| 10.0860.019 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 - 30mm | 150mm | 30mm | 0.5mm | 20m | 1 |
| 10.0860.020 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 - 25mm | 200mm | 25mm | 0.5mm | 20m | 1 |
| 10.0860.021 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 - 30mm | 200mm | 30mm | 0.5mm | 20m | 1 |
| 10.0860.022 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 - 50mm | 200mm | 50mm | 0.5mm | 20m | 1 |
| 10.0860.023 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 - 100mm | 250mm | 100mm | 0.5mm | 20m | 1 |
| 10.0860.024 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 - 25mm | 250mm | 25mm | 0.5mm | 20m | 1 |
| 10.0860.025 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 - 30mm | 250mm | 30mm | 0.5mm | 20m | 1 |
| 10.0860.027 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 - 20mm | 250mm | 20mm | 0.5mm | 20m | 1 |
| 10.0860.028 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 - 20mm | 300mm | 20mm | 0.5mm | 20m | 1 |
| 10.0860.029 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 - 30mm | 300mm | 30mm | 0.5mm | 20m | 1 |
| 10.0860.030 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 - 50mm | 300mm | 50mm | 0.5mm | 20m | 1 |
| 10.0860.031 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 - 100mm | 300mm | 100mm | 0.5mm | 20m | 1 |
| 10.0860.032 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 - 30mm | 400mm | 30mm | 0.5mm | 20m | 1 |
| 10.0860.033 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 - 100mm | 400mm | 100mm | 0.5mm | 20m | 1 |
| 10.0860.034 | OBEX CORTEX 0500 EPDM Membrane Inc 0860 - 30mm | 500mm | 30mm | 0.5mm | 20m | 1 |
| Other Variations & Thicknesses Available On Request |
